Electric Mini
Skid Steer
Electric Mini
Skid Steer

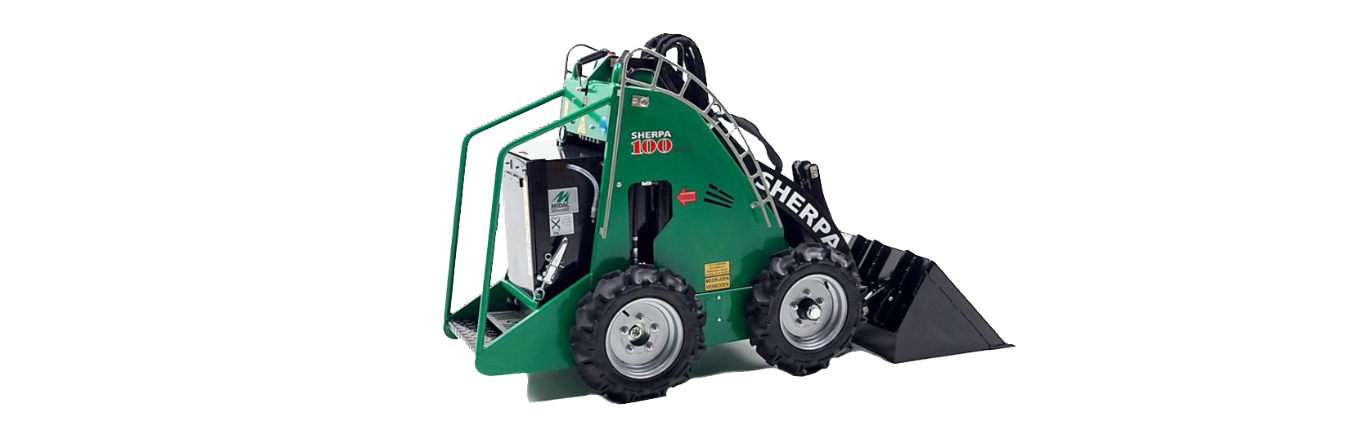

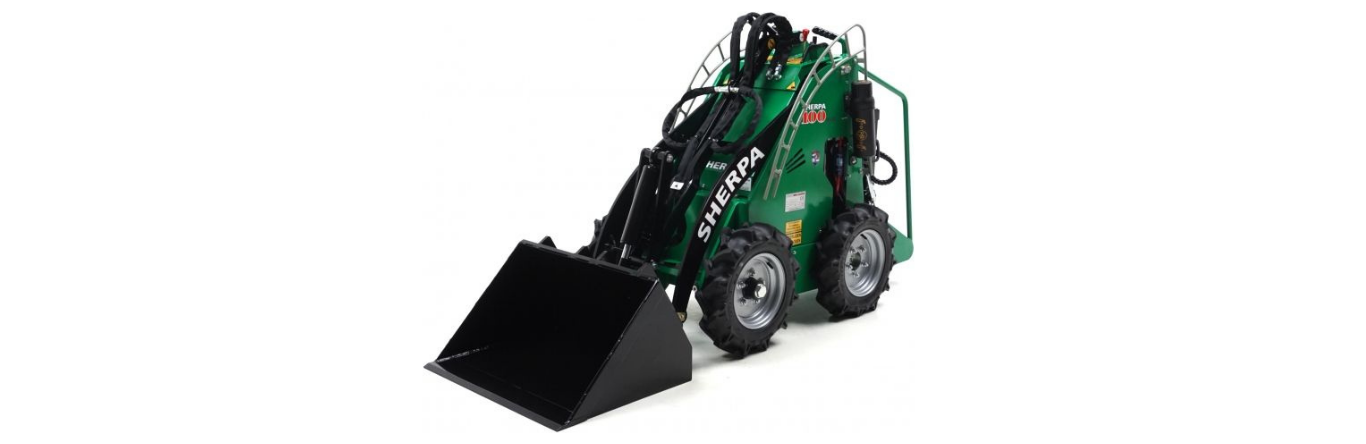

The 100ECO
An electric mini skid-steer that easily fits through a standard door, has zero emissions, reduces the risk of injury, & saves on labor! The 100ECO electric compact skid steer loader can do it all with an extensive range of attachments available. With its compact size, this machine can get into tight spaces other skid-steers can't making it the perfect alternative to manual labor.
electrical
specs
The 100ECO's battery information and a quick guide to better understanding its features.
| BATTERY VOLTAGE | 24V |
| BATTERY CAPACITY | 7.56 kWh |
| BATTERY LIFE CYCLES | 3000+ CYCLES |
| BATTERY TYPE | LITHIUM ION (LiFePo) |
| RUNTIME | 7-9 HOURS |
| RECHARGE TIME ON 110V | 14 HOURS |
Understanding Battery Powered Equipment
HOW RUNTIME WORKS
Some tasks require more power than others (like using a hydraulic hammer to break concrete) and can impact runtimes.
LIFE CYCLES
A life cycle is the number of times that battery can be charged & discharged before needing to be replaced with a new battery.
WHY 24 VOLTS?
With a 24V system, we're able to sufficiently power the 100ECO for a full day, while not sacrificing power and the time it takes to recharge.
TEMPERATURE NOTES
Extreme weather can impact a batteries performance. Temps below 32 degrees will decrease runtime, while temps above 120 also impact runtime.
Hydraulic
specs
The 100ECO's hydraulic system information.
| HYDRAULIC FLOW | 5 GAL/MIN |
| MAX WORKING PRESSURE | 2,9000/2,610 PSI |
| HYDRAULIC OIL TANK CAPACITY | 10 GAL |
OPERATIONAL
specs
The 100ECO's operational specs.
| MAX HEIGHT W/ BUCKET UP | 100 IN |
| MINIMUM HEIGHT | 47 IN |
| MAXIMUM LENGTH W/ BUCKET | 85 IN |
| MINIMUM LENGTH | 59.8 IN |
| WIDTH | 29.9 IN |
| MAX COUPLING PLATE HINGE POINT HEIGHT | 81 IN |
| BUCKET ANGLE WHEN DUMPING | 51 DEGREES |
| DUMP HEIGHT | 73 IN |
| LENGTH FROM FRONT WHEEL TO BUCKET WHEN DUMPING | 7 IN |
| WHEELBASE | 26 IN |
| GROUND CLEARANCE | 5 IN |
| TURNING RADIUS | 63 IN |
| GRADEABILITY | 18 DEGREES |
| GROUND PRESSURE RATING | 27.5 PSI |
| BREAKOUT FORCE | 1,315 LBS |
| TRACTIVE FORCE | 730 LBS |
| MACHINE WEIGHT | 1,770 LBS |
| RATED TIPPING LOAD | 620 LBS |
| SPEED | UP TO 2MPH |
Cratos Floor Scraper
Cratos GRapple Bucket
Light & Heavy Duty Forks
Cratos M01 hydraulic hammer
Vacuum Pad System
Cratos Standard Bucket
100ECO
VIdeos
100ECO
Images
Video Walkthrough
of the battery-electric
Skid Steer
Proactively learn operating, safety, & maintenance procedures for our 100ECO Mini Skid Steer here with our available training resources. Don't be left in the dark on whether or not our equipment suits your job site needs.
Frequently Asked Questions About the 100eco
- How Long Does the Skid Steer Run? The Specs Say 7-9 Hours: Great question! The "7-9," hours is by no means an attempt to confuse you. The simple answer is that no power source (fuel, battery, or otherwise) has a definite runtime. What you're doing with the machine will determine how much fuel or battery is drained. Lighter tasks will have a longer runtime, while harder tasks will have a shorter runtime.
- Why Does It Take 14 Hours to Charge?: We make sure to allow you to recharge the 100ECO with only one (1) standard 110v electrical outlet. There is no need to try to find 220v or 480v/3phase electric onsite. You can now take your machine to any jobsite and recharge overnight with no issues. Come back in the morning ready for another day of safe and efficient work.
- Is the 100ECO as Strong as a Diesel Powered Mini Skid Steer?: Yes it is! Unlike some other electric mini skid steers, we do not skimp on the components that make our machine. We ensure that our skid steers are outfitted with the highest quality components to give you the power necessary for the toughest construction or demolition job sites.
- Is It Safe to Use This Skid Steer Indoors?: Not only is it safe, it's the main reason for its existence. Rather than sticking to exhausting manual labor or using combustion engine machines for interior jobs, our battery-electric skid steers allows you to let the machines do the work making your projects safer and more efficient.
Frequently Asked Questions About the 100eco
